Product Description

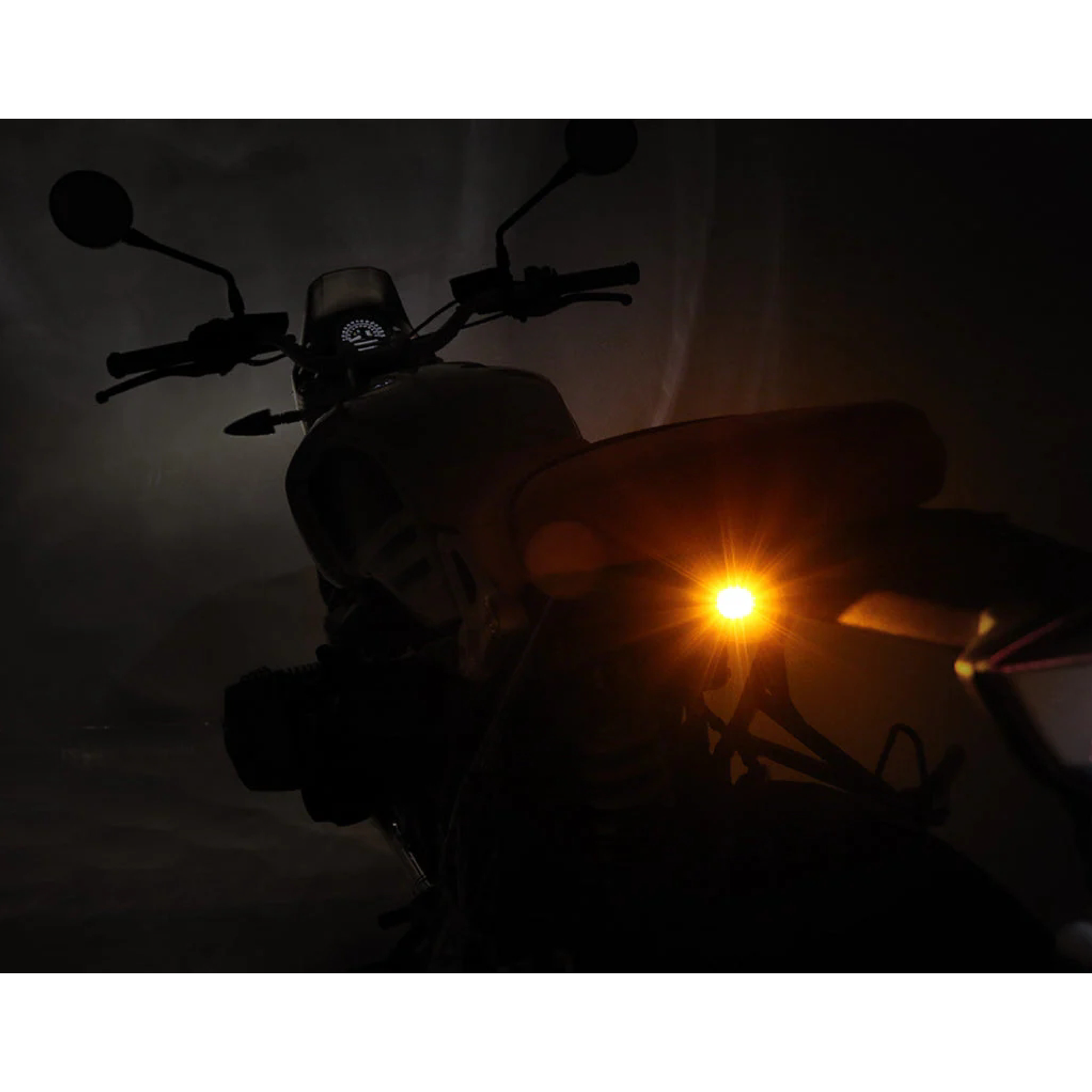

These unique turn signals were designed in collaboration with Analog Motorcycles to create the smallest possible turn signal that could still put out a significant amount of light. These signals designed with custom and sport applications in mind where riders want a super low profile look but don’t want to sacrifice functionality, but can be used on pretty much any motorcycle. Each pod features two high-power 3 watt LEDs packed into a durable cast aluminum housing coated in a satin black powder coat finish. Don’t let their small size fool you. These pods are super bright and feature an angled lens design that makes the bright amber LEDs completely visible from the side of the vehicle in addition to the front.

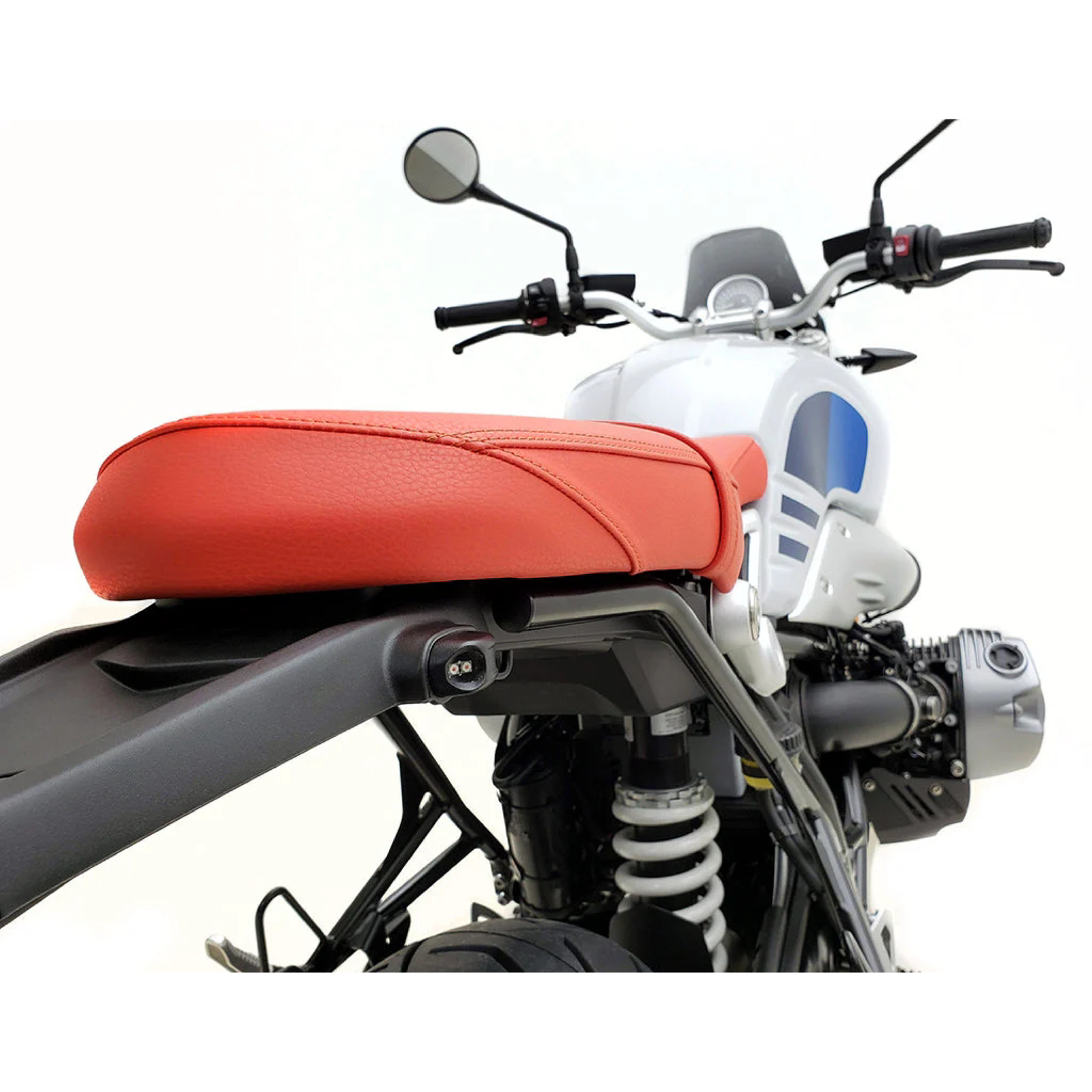

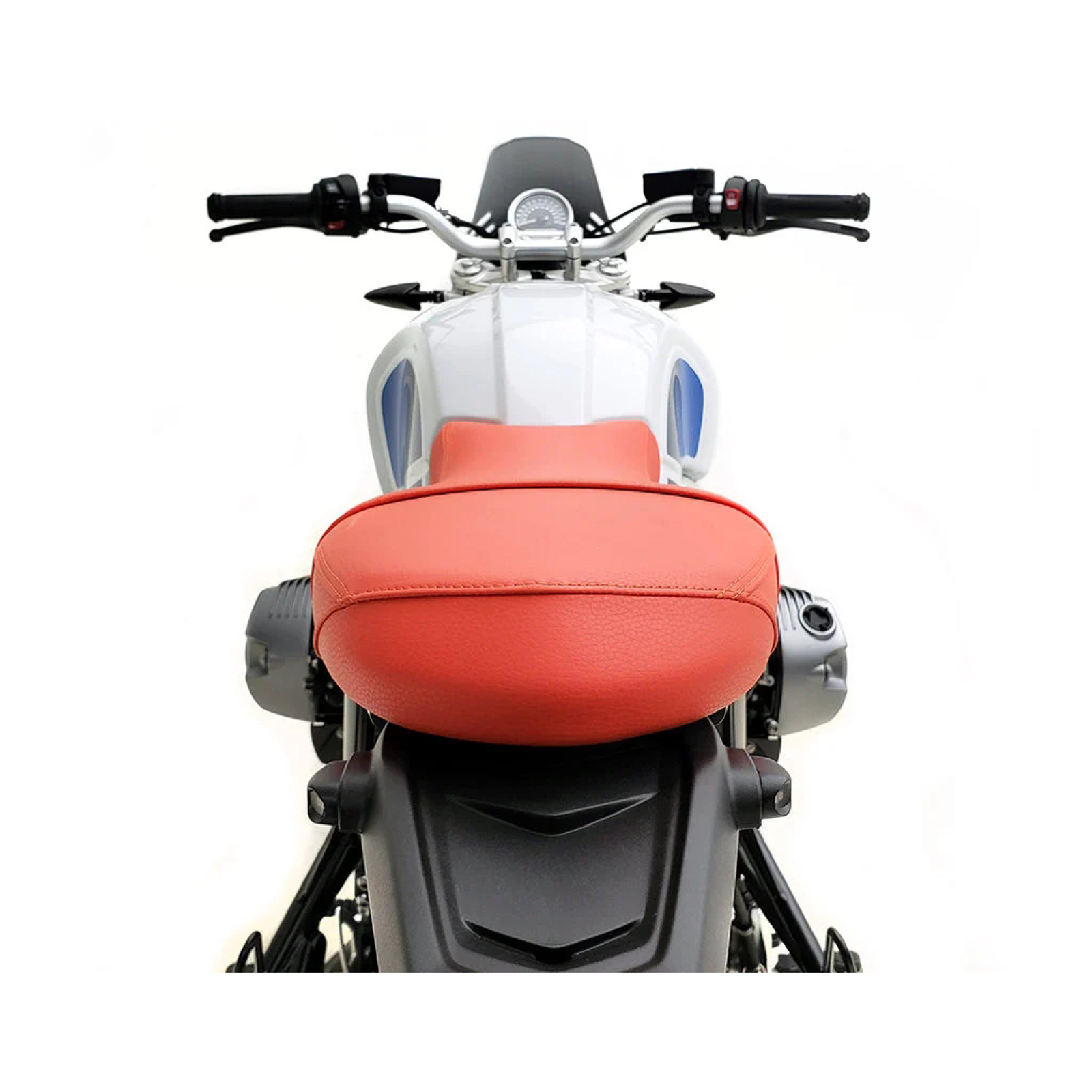

While the pods can be flush mounted onto any flat surface, they are also specifically profiled to match the original shape of factory turn signal bases. This creates a super clean, low-profile, install in the factory turn signal location. The pods can also be run as auxiliary turn signals by adding them to your front fender, hand guards or luggage cases.

Does not comply with FMVSS108 or CMVSS108.

Installation Note: Turn load resistors might be necessary to prevent hyper flashing of the signals when swapping from incandescent to LED turns signals.

Highlights

Super bright turn signals
Two high-power 3 watt LEDs per pod
Pods can also be run as auxiliary turn signals

Product Specifications

Pod Size: 36.8 x 18.5 x 14mm
LED: Two per signal, Flip Chip C3535 3W
LED Color: Amber
Power Draw: 6 Watts per signal (12W Pair)
Input Voltage: 12V DC
IP67 Waterproof

What’s in the box?

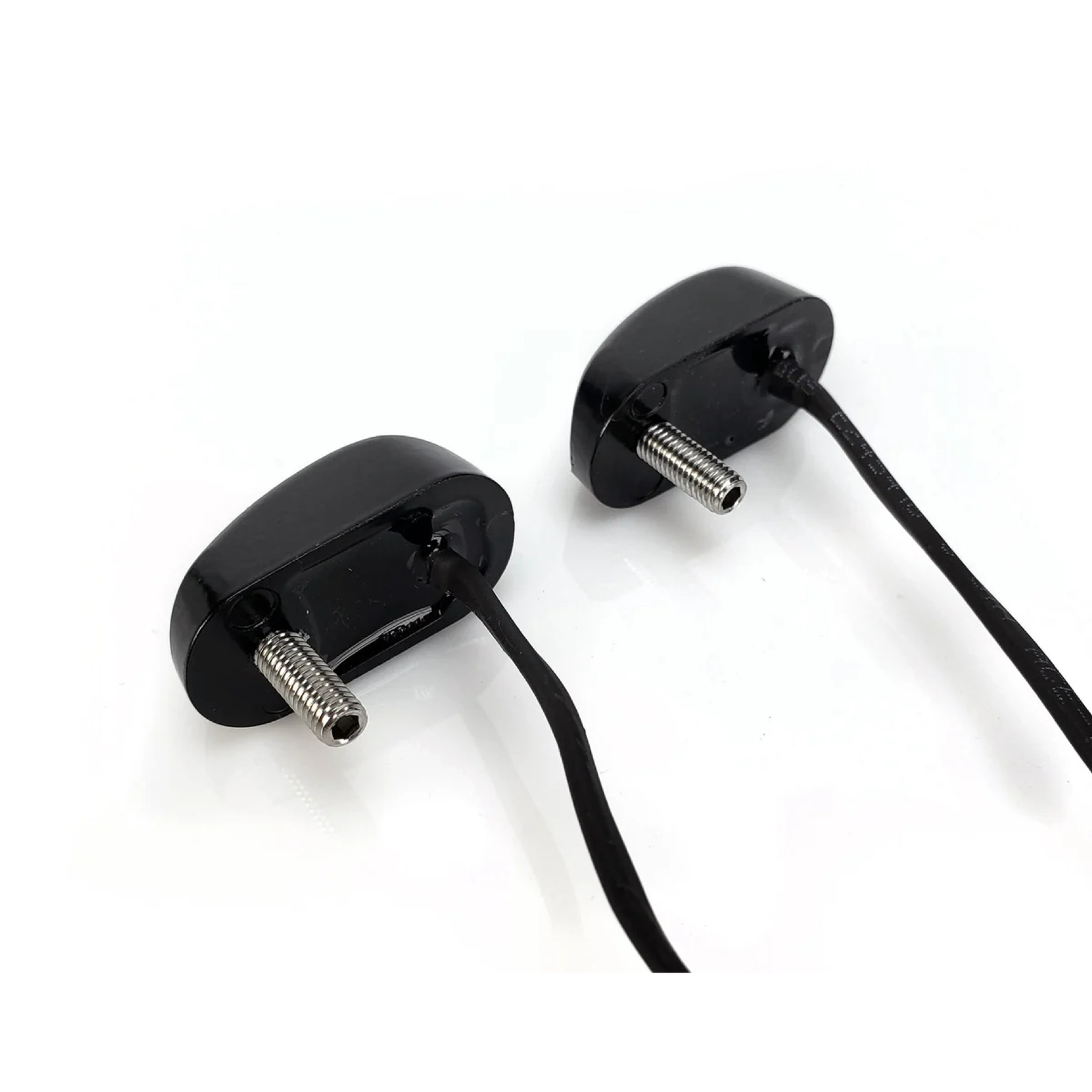

Flush Mount Signal Pods x 2
M5x20 Set Screw, DIN 913 x 2
M5 Nylock Nut, DIN 985 x 2
Posi-Lock Connectors x 4
