DENALI DL4 AMBER DRIVING LIGHT PODS W/ DATADIM TECHNOLOGY DNL.DL4.050.A.2

Name: DENALI DL4 AMBER DRIVING LIGHT PODS W/ DATADIM TECHNOLOGY DNL.DL4.050.A.2
Brand: DENALI
SKU: DNL.DL4.050.A.2
Availability: InStock

₹23,800.00

DENALI DL4 AMBER DRIVING LIGHT PODS W/ DATADIM TECHNOLOGY DNL.DL4.050.A.2 - Image 2

Product Description

Introducing the brightest and most durable motorcycle driving lights that won’t break the bank. Engineered based on a decade of customer feedback, our DL Series Driving Lights are purpose-built to deliver best-in-class beam performance, unmatched durability, and our signature dimming technology at a price point that is more approachable to new riders, younger riders, and our rapidly growing international customer base!

How can they be this good and so affordable at the same time? Thanks to our single-piece TIR optic and robotically sealed construction, we are able to reduce the number of parts, accelerate assembly time, and reduce the overall production costs without sacrificing any changes to our top-bin LEDs, circuitry, or optical design. The result is a indestructible & submersible light pod that can deliver more light per dollar than any of our competitors. All DL Series lamps are available in white, amber, or selective yellow beam options are plug-&-play compatible with all DENALI lighting harnesses and controllers.

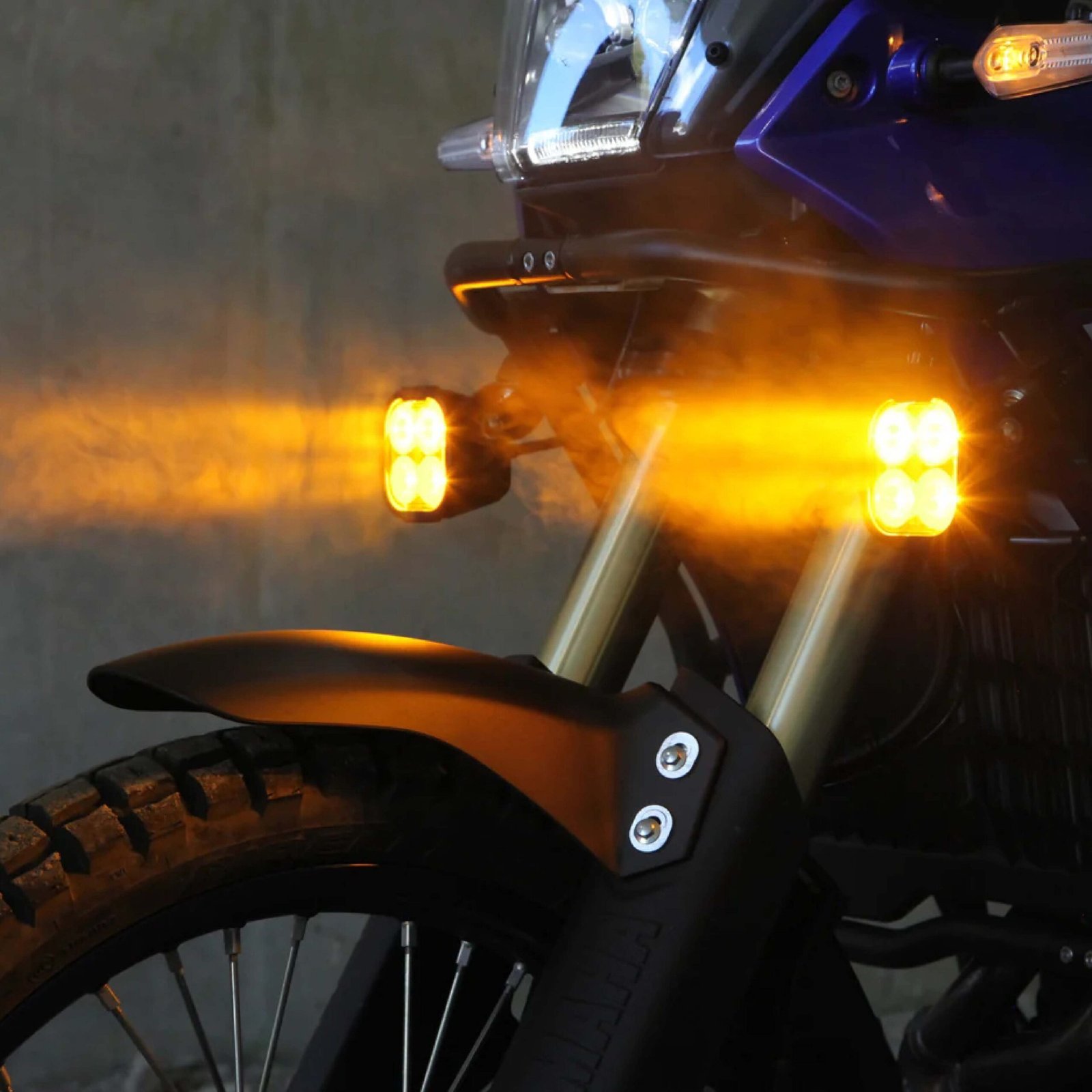

The DL4 features a perfected hybrid driving beam and is the ideal option for your primary auxiliary driving lights on small to medium sized bikes. It is also small and light enough that it can be mounted in lower fender applications on larger ADV bikes.

Features:

HiDrive LEDs 6,800 Lumens Per Pair – Top-bin CREE LEDs driven at 8 watts each deliver a remarkably powerful beam in a beefy 9-LED square package.
Oversized TIR Optics – Perfected Hybrid Driving Beam – Our proprietary TIR optics distribute the beam of light more efficiently than traditional reflector optics, giving our driving beam unmatched distance and width from the most compact housing possible.
DataDim™ Plug-&-Play Dimming – Our signature 3-wire design uses dedicated dimming wiring for maximum reliability and plug-&-play connection to all DENALI light harnesses, DialDim, and CANsmart Controllers.
DrySeal™ Sealed Beam Construction – Our patented technique robotically seals the lens and uses internal potting at the cable entry to guarantee 100% waterproof submersible performance even when connectors are removed.
Overbuilt Not Overpriced – Our 4mm thick powder-coated steel brackets & robust heatsink enable an impressive 21grms vibration rating, while our Polycarbonate lenses are reinforced with UV hard coating.
ECE Compliant Driving Beam – Our hybrid driving beam is ECE certified for street-legal use as a primary or auxiliary high beam in the European Union. Yellow and amber lenses are not compliant for street-legal high beam use.

Specifications (Single | Pair):

LED’s: Cree XPL HI (8W each)
Watts: 32W | 64W
Amp Draw: 2.7A | 5.4A
Raw Lumens: 3,400 | 6,800
Beam Distance: 820′ (250m) | 1091′ (333m)
Beam Width: 157′ (48m) | 209′ (64m)
Connector: DataDim Compatible 3-wire DT
Color Temperature: 6000K
Operating Voltage: 9-32 VDC
Pod Size: 3″ x 3″ Square x 2″ Deep
Pod Weight: 1.2 lbs | 2.4 lbs
IP Rating: IP68 & 69K Waterproof Submersible & High-Pressure Spray
Beam Certification: ECE R149 Driving Beam (Aux High Beam)
EMC: R10, CISPR 25, CE, UKCA Compliant

New Wiring & Switching Options

For 2022 we have expanded on our standard light kit to deliver a customizable package that allows you to choose the best harness and lighting control option for your vehicle on your budget! Select from the options above or click on the links below to learn more about each of our wiring and switching options. Please be sure to add one of these options to your light pods to complete your DENALI lighting kit!

Standard Powersports Harness – Robust, inexpensive, low-profile waterproof switch – the best option for a basic single intensity install
Standard Automotive Harness – Robust, added length, and a flush mount illuminated rocker switch for dash mounting
Premium Powersports Harness – Overmolded wire, and a premium illuminated switch with handlebar mounting kit
DataDim Module – Add this clever dimmer module to any of the above harnesses to enable your lights to change intensity in sync with your factory high beam switch!
DialDim Lighting Controller – The top dog in LED lighting control allows you to independently turn on/off and dim two sets of lights from a single halo dimmer switch and unlocks heaps of bonus features like high/low sync, strobe with horn, flash with signal, cancel with signal, electronic fuse setting and even doubles as a battery voltage monitor!

What’s Included:

Single light pods include:
- (1x) Light Pod w/ Mounting Hardware
- (1x) 3-wire pigtail
Pair of light pods include:
- (2x) of the above light pods & pigtails

Instruction Manual Download

PDF Instruction Manual (English)
